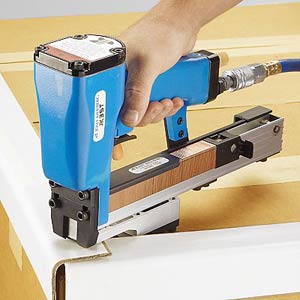

Josef Kihlberg 35T-590 pneumatic carton stapling pliers. Uses 1" wide crown staples, 3/4" - 1 1/4". For assembling heavy-duty over-spec double-wall or tri-wall corrugated trays, lids, or box tops.
The JK35T-590 with a fixed anvil uses the same staples as the JK590. It is an ideal combination of tool and staples for assembling heavy-duty over-spec double-wall or tri-wall corrugated trays, lids, or box tops. The plier design with a 2 3/4" throat allows for easy stapling inside the corners of those packaging forms that otherwise are very difficult to fasten. Using the included spacer plates, the stapling gap can easily be adjusted for different thicknesses from .047" (12mm) to maximum 1.06" (27mm). It is capable of stapling up to two layers of tri-wall corrugated material or fiberboard. No other stapler is as effective and efficient at these specialized applications.
The JK590 staples are specially engineered for the corrugated-to-wood applications and are proprietary to the JK590 air staplers. The flat, wide-crown staples and tool design enable maximum stapled compression of the corrugated material to the wood structures without breaking or tearing the corrugated surface skin thereby maintaining maximum form strength of the packaging. This ensures strong and robust transport durability and security.
Staples for JK35T:
- JK590/19C 3/4"
- JK590/22C 7/8"
- JK590/25C 1"
- JK590/32C 1-1/4"
JK35T-590 Parts (See Pages 46-49), Manual (pdf)
